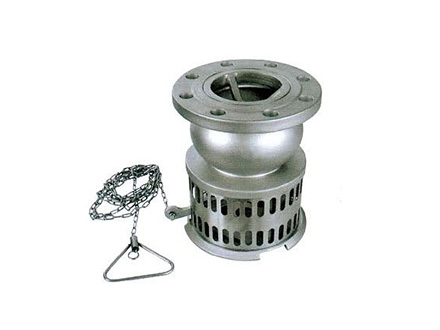

· 法兰规范 END RLANGE DIMENSION: JIS B2220/ANSI B16.5
· 精密铸造 INVESTMENT CASTING BODY
· 拉杆式/全流量 LEVER TYPE/FULL PORT

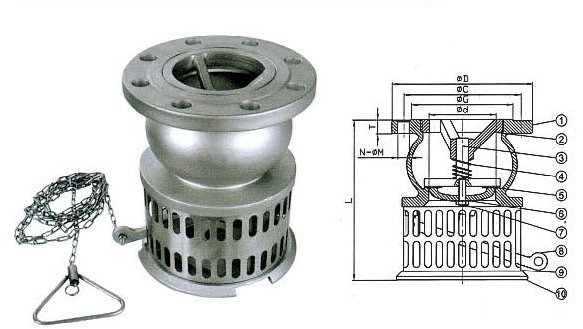

| NO. | 部件名称 | PART NAME | 材质 MATERIAL | |
| 1 | 阀体 | BODY | SCS13/CF8 | SCS14/CF8M |
| 2 | 阀盖 | CAP | SCS13/CF8 | SCS14/CF8M |
| 3 | 阀瓣 | DISC | SCS13/CF8 | SCS14/CF8M |
| 4 | 弹簧 | SPRING | SS316 | |
| 5 | 阀瓣座 | DISC SEAT | NBA | |
| 6 | 压盖 | GLAND | SCS13/CF8 | SCS14/CF8M |
| 7 | 螺栓 | BOLT | SS304 | |
| 8 | 手柄 | LEVER HANDLE | SCS13/CF8 | SCS14/CF8M |
| 9 | 纲 | SCREEN | SS304 | |
| 10 | 板 | PLATE | SCS13/CF8 | SCS14/CF8M |
| SIZE | d | L | D | C | G | T | N-ØM | ||||||
| DN | NPS | 10K | 150 | 10K | 150 | 10K | 150 | 10K | 150 | 10K | 150 | ||
| 50 | 1/2" | 50 | 190 | 155 | 152 | 120 | 120.5 | 96 | 92 | 16 | 15.9 | 4-Ø19 | 4-Ø19 |
| 65 | 21/2" | 65 | 200 | 175 | 178 | 140 | 139.5 | 116 | 105 | 18 | 17.5 | 4-Ø19 | 4-Ø19 |
| 80 | 3" | 80 | 220 | 185 | 190 | 150 | 152.5 | 126 | 127 | 18 | 19.1 | 8-Ø19 | 4-Ø19 |
| 100 | 4" | 100 | 240 | 210 | 229 | 175 | 190.5 | 151 | 157 | 18 | 23.9 | 8-Ø19 | 8-Ø19 |
| 125 | 5" | 125 | 260 | 250 | 254 | 210 | 216.0 | 182 | 186 | 20 | 23.9 | 8-Ø23 | 8-Ø22 |
| 150 | 6" | 150 | 280 | 280 | 279 | 240 | 241.5 | 212 | 216 | 22 | 25.4 | 8-Ø23 | 8-Ø22 |
| 200 | 8" | 200 | 330 | 330 | 343 | 290 | 298.5 | 262 | 270 | 22 | 28.6 | 12-Ø23 | 8-Ø22 |
