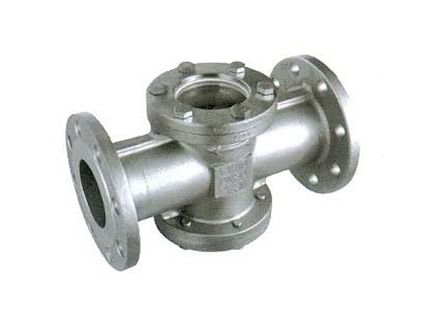

· 结构长度 FACE TO FACE DIMENSION: DIN 3202-F1
· 法兰规范 END RLANGE DIMENSION: GB 9113
· 设计制造 DESIGN ANSI B16.34
· 检查与测试 TEST:JIS B2003/API598
· 精密铸造 INVESTMENT CASTING BODY

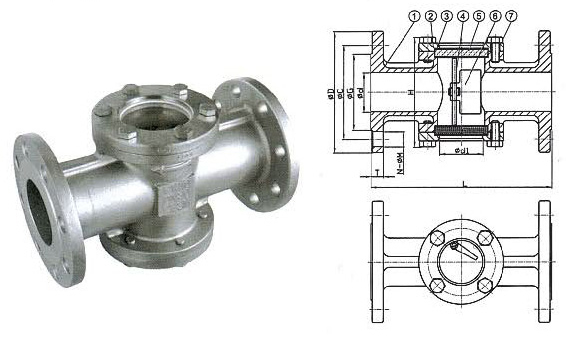

| NO. | 部件名称 | PART NAME | 材质 MATERIAL | ||
| 1 | 阀体 | BODY | WCB | CF8 | CF8M |
| 2 | 阀盖 | CAP | WCB | CF8 | CF8M |
| 3 | 大薄片 | GASKET | PTFE | ||
| 4 | 轴心 | STEM | SS304 | SS304 | SS306 |
| 5 | 玻璃 | GLASS PARCEL | GLASS | ||
| 6 | 指示片 | INDICATOR | WCB | CF8 | CF8M |
| 7 | 螺栓 | BOLT | SS304 | ||
| SIZE | d | d1 | L | H | D | C | G | T | N | M | |
| DN | NPS | ||||||||||
| 15 | 1/2" | 15 | 35 | 130 | 115 | 95 | 65 | 46 | 14 | 4 | 14 |
| 20 | 3/4" | 20 | 35 | 150 | 115 | 105 | 75 | 56 | 16 | 4 | 14 |
| 25 | 1" | 25 | 35 | 160 | 115 | 115 | 85 | 65 | 16 | 4 | 14 |
| 32 | 11/4" | 32 | 55 | 180 | 143 | 140 | 110 | 84 | 18 | 4 | 18 |
| 40 | 11/2" | 40 | 55 | 200 | 143 | 150 | 125 | 99 | 20 | 4 | 18 |
| 50 | 2" | 50 | 55 | 230 | 143 | 165 | 145 | 118 | 20 | 4 | 18 |
| 65 | 21/2" | 65 | 85 | 290 | 185 | 185 | 160 | 132 | 20 | 8 | 18 |
| 80 | 3" | 80 | 85 | 310 | 196 | 200 | 180 | 156 | 22 | 8 | 18 |
| 100 | 4" | 100 | 110 | 350 | 228 | 220 | 210 | 184 | 22 | 8 | 18 |
| 150 | 6" | 150 | 160 | 480 | 310 | 285 | 240 | 211 | 24 | 8 | 22 |
