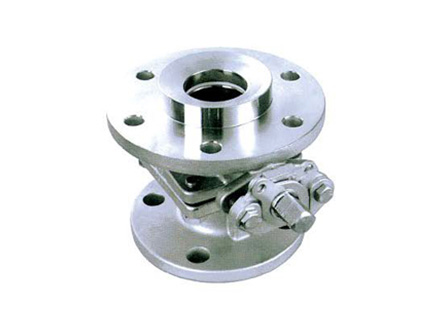

· 法兰规范 END RLANGE DIMENSION: JIS B2220/ANSI B16.5
· 设计制造 DESIGN ANSI B16.34
· 检查与测试 TEST:JIS B2003/API 598
· 精密铸造 INVESTMENT CASTING BODY
· 防爆轴心/全流量 BLOW-OUT PROOF STEM/FULL PORT

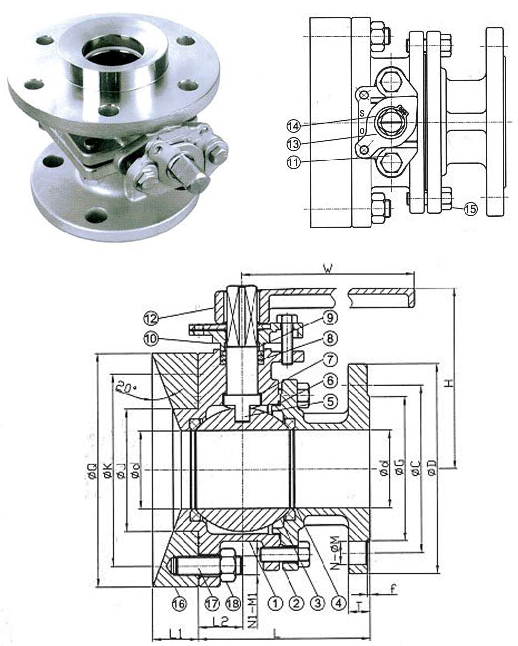

| NO. | 部件名称 | PART NAME | 材料 MATERIAL | |
| 1 | 阀体 | BODY | SCS13/CF8M | SCS14/CF8M |
| 2 | 阀盖 | CAP | SCS13/CF8M | SCS14/CF8M |
| 3 | 钢球 | BALL | SCS13/CF8M | SCS14/CF8M |
| 4 | 球垫 | SEAT | PTFE | |
| 5 | 轴心 | STEM | SS304 | SS316 |
| 6 | 大薄片 | GASKET | PTFE | |
| 7 | 小薄片 | THRUST WASHER | PTFE | |
| 8 | 中口 | PACKING | PTFE | |
| 9 | 桃形挡片 | GLAND PACKING | PTFE | |
| 10 | 牛楠 | GLAND | SCS13 | |
| 11 | 牛楠螺栓 | GLAND BOLT | SS304 | |
| 12 | 把手 | HANDLE | WCB | |
| 13 | 桃形挡片 | STOPPER | SS304 | |
| 14 | C型扣环 | SNAP RING | SS304 | |
| 15 | 螺栓 | BOLT | SS304 | |
| 16 | 法兰片 | FLANGE | SCS13/CF8M | SCS14/CF8M |
| 17 | 螺栓 | BOLT | SS304 | |
| 18 | 螺母 | NUT | SS304 | |
|
壳体（水） SHELL(BY WATER) |
ANSI-150LB | JIS-10K | |
| 450PSI | 2.1Mpa | ||
| 32kg/cm² | 21.5kg/cm² | ||
|
阀座 SEAT |
水 BY WATER |
315PSI | 1.6Mpa |
| 22kg/cm² | 16.5kg/cm² | ||
|
气体 BY AIR |
85PSI | 0.6Mpa | |
| 6kg/cm² | 6kg/cm² | ||
| SIZE | d | L | L1 | L2 | H | W | D | C | G | T | N | M | Q | K | J | N1 | M1 | |||||||
| DN | NPS | 10K | 150 | 10K | 150 | 10K | 150 | 10K | 150 | 10K | 150 | 10K | 150 | |||||||||||
| 25 | 1" | 25 | 118 | 33 | 25 | 105 | 160 | 125 | 108 | 90 | 79.5 | 67 | 51 | 14 | 12.1 | 4 | 4 | 19 | 16 | 135 | 100 | 55 | 4 | M12 |
| 40 | 1-1/2" | 40 | 125 | 33 | 28 | 125 | 186 | 140 | 127 | 105 | 98.5 | 81 | 73 | 16 | 14.3 | 4 | 4 | 19 | 16 | 155 | 120 | 72 | 4 | M12 |
| 50 | 2" | 50 | 133 | 33 | 31 | 167 | 186 | 155 | 152 | 120 | 120.5 | 96 | 92 | 16 | 15.9 | 4 | 4 | 19 | 19 | 175 | 140 | 90 | 6 | M12 |
| 65 | 21/2" | 65 | 143 | 38 | 37 | 154 | 324 | 175 | 178 | 140 | 139.5 | 116 | 105 | 18 | 17.5 | 4 | 4 | 19 | 19 | 195 | 160 | 102 | 6 | M16 |
| 80 | 3" | 80 | 149 | 46 | 48 | 196 | 324 | 185 | 190 | 150 | 152.5 | 126 | 127 | 18 | 19.1 | 8 | 4 | 19 | 19 | 250 | 210 | 140 | 6 | M16 |
| 100 | 4" | 100 | 168 | 51 | 58 | 210 | 324 | 210 | 229 | 175 | 190.5 | 151 | 157 | 18 | 23.9 | 8 | 8 | 19 | 19 | 280 | 240 | 166 | 6 | M20 |
