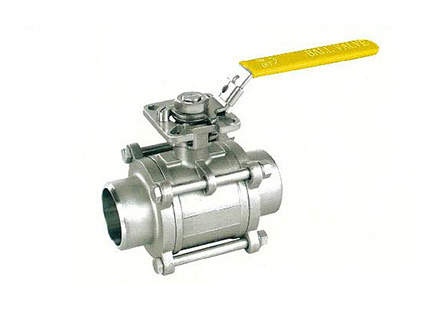

·ISO 5211直接安装执行机构的平台设计ISO 5211 Direct-Maunting Of Actuton Of Valves Design
·防爆中轴设计,防静电装置 Bolw-Out-Proof Stem Design,Artistatic Device
·挂锁装置 Locking Device
·精密铸造 Investment Caating
·连接形式,螺纹.焊接,法兰、卡 End Type：SCREWED.WELD.FLANGE.CLAMP
·公称压力(WorkingPreasure)1/2"-2" 1000PSI WOG 2-1/2"-4" 800PSI WOG
·适用温度范围:-50-232℃
TerperatureRange,-60 to 450 °F
·其主要特点是,有适应于各种水油气介质的流量,压力温度的调节可选不同V型球角度。达到最佳调节效果

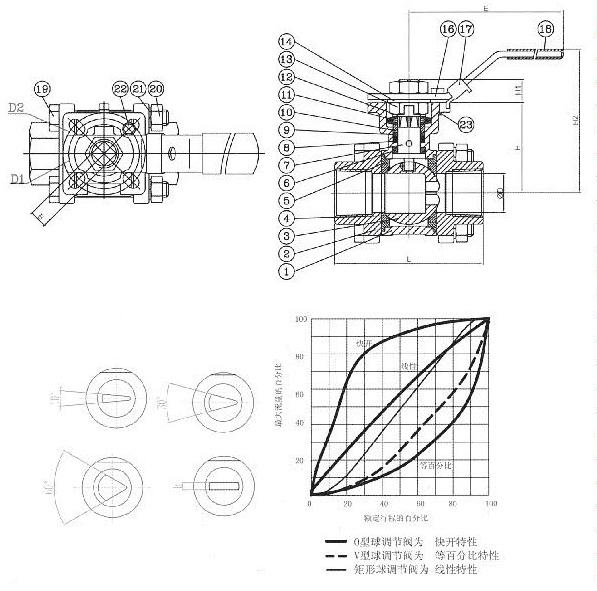

| NO. | 部件名称PART NAME | 材料 MATERIAL | 数量 Q'TY |
| 1 | 阀体 BODY | ASTM A351 GR.CF8M | 1 |
| 2 | 侧盖 END CAP | ASTM AS51 GR.CF8M | 2 |
| 3 | 钢球 BALL | ASTM A276 TYPE SS316 | 1 |
| 4 | 球垫 SEAT | PTFE/RTFE | 2 |
| 5 | 大薄片 GASKET | PTFE | 2 |
| 6 | 小薄片 THRUST WASHER | PTFE | 1 |
| 7 | 中轴 STEM | ASTM A276 TYPE SS316 | 1 |
| 8 | 中口 GLAND PACKING | PTFE/RTFE | 1 SET |
| 9 | 衬套 BUSHING | 50% S.S FILLED PTFE | 1 |
| 10 | 铁圈 GLAND BUSH | ASTM A276 TYPE SS304 | 1 |
| 11 | 盘形垫片 BELLEVILLE WASHER | ASTM A240 TYPE SS304 | 2 |
| 12 | 止锁片 TAB WASHER | ASTM A240 TYPE SS304 | 1 |
| 13 | 阀杆螺母 STEM NUT | ASTM A276 TYPE SS304 | 2 |
| 14 | 阀杆垫片 STEM WASHER | ASTM A240 TYPE SS304 | 1 |
| 15 | 手柄螺母 HANDLE NUT | ASTM A276 TYPE SS304 | 1 |
| 16 | 手柄 HANDEL | ASTM A240 TYPE SS304 | 1 |
| 17 | 挂锁装置 LOCKING DEVICE | ASTM A240 TYPE SS304 | 1 |
| 18 | 手柄套 HANDLE COVER | PLASTIC | 1 |
| 19 | 螺栓 BOLT | ASTM A276 TYPE SS304 | 4 |
| 20 | 螺栓/螺母 BOLT/NUT | ASTM A276 TYPE SS304 | 4 |
| 21 | 螺栓垫圈 BOLT WASHER | ASTM A240 TYPE SS304 | 4 |
| 22 | 定位销 STOP PIN | ASTM A276 TYPE SS304 | 1 |
| 23 | 定位螺母 PIN NUT | ASTM A276 TYPE SS304 | 1 |
| SIZE | B | D | D1 | D2 | E | H | H1 | H2 | H3 | H4 | H5 | L1 | L | ISO5211 | ACTUATOR | PRESSURE |
| 1/2'' | 9 | 15 | 42 | 50 | 140 | 42.1 | 8.7 | 71 | 110.4 | 114 | 314.4 | 109 | 75 | F04-F05 | 32DA | 90PSI |
| 3/4'' | 9 | 20 | 42 | 50 | 140 | 48 | 8.45 | 78 | 118.6 | 114 | 322.6 | 109 | 80 | F04-F05 | 32DA | 130PSI |
| 1'' | 11 | 25 | 50 | 70 | 165 | 58.5 | 9.8 | 97 | 151.6 | 114 | 355.6 | 173 | 90 | F05-F07 | 52DA | 50PSI |
| 1''-1/4'' | 11 | 32 | 50 | 70 | 165 | 62.4 | 10.7 | 100 | 162.4 | 114 | 366.4 | 173 | 110 | F05-F07 | 52DA | 60PSI |
| 1''-1/2'' | 14 | 38 | 50 | 70 | 185 | 79 | 12.6 | 128 | 194.7 | 114 | 398.7 | 196 | 120 | F05-F07 | 63DA | 80PSI |
| 2'' | 14 | 50 | 50 | 70 | 185 | 86.9 | 12.2 | 132 | 208.9 | 114 | 412.9 | 196 | 140 | F05-F07 | 63DA | 80PSI |
| 2''-1/2'' | 17 | 65 | 50 | 70 | 260 | 109.5 | 20 | 164.5 | 245.5 | 114 | 449.2 | 234 | 185 | F07-F10 | 75DA | 80PSI |
| 3'' | 17 | 80 | 70 | 102 | 260 | 118.5 | 20 | 179.5 | 290.1 | 114 | 494.1 | 250 | 205 | F07-F10 | 85DA | 60PSI |
| 4'' | 17 | 100 | 70 | 102 | 260 | 133.4 | 20 | 188 | 344 | 114 | 548 | 297 | 240 | F07-F10 | 100DA | 60PSI |
