·防爆轴心 /全流量 BLOW-OUT PROOF STEM/FULL PORT
·对焊盖 BULL WELD END
·带ISO 5211 平台座 WITH ISO 5211 MOUNTING PAD
·精密铸造 INVESTMENT CASTING BODY
·1000PSI(PN63)W.O.G
·挂锁装置 LOCKING DEVICE

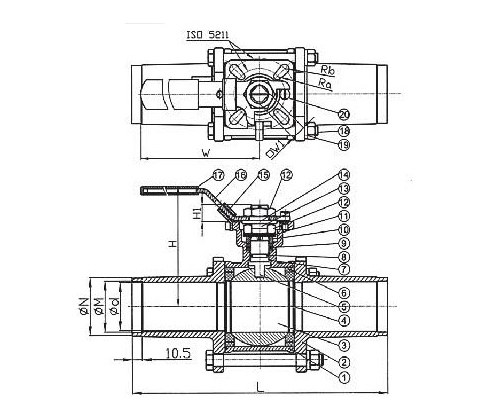

| NO. | 部件名称PART NAME | 材料 MATERIAL | |
| 1 | 阀体 BODY | WCB | CF8M |
| 2 | 阀盖 CAP | WCB | CF8M |
| 3 | 钢球 BALL | CF8M | |
| 4 | 球垫 SEAT | PTFE | |
| 5 | 轴心 STEM | SS316 | |
| 6 | 大薄片 GASKET | PTFE | |
| 7 | 小薄片 THRUST WASHER | 15%R+PTFE | |
| 8 | O型圈 O-PING | VITON | |
| 9 | 中口 PACKING | PTFE | |
| 10 | 筒套 GLAND | SS304 | |
| 11 | 蝶形垫片BELLEVIILLE WASHER | SS304 | |
| 12 | 轴心螺母 STEM NUT | SS304 | |
| 13 | 防转片 STOP WASHER | SS304 | |
| 14 | 把手垫 HANDLE WASHER | SS304 | |
| 15 | 挂锁装置 LOCKING DEVICE | SS304 | |
| 16 | 把手 HANDEL | SS304 | |
| 17 | 把手套 PLASTIC COVER | PLASTIC | |
| 18 | 螺栓/螺母 BOLT/NUT | SS304 | |
| 19 | 弹簧华司 SPRING WASHER | SS304 | |
| 20 | 定位销 STOP PIN | SS304 | |
| SIZE | d | M | N | L | H | W | ISO5211 | H1 | W1 | Ra | Rb | |
| DN | NPS | |||||||||||
| 10 | 3/8'' | 12.7 | 9.5 | 13.5 | 253 | 74 | 123 | F03-F04 | 9 | 9 | R3 | R3 |
| 15 | 1/2'' | 15 | 16 | 20 | 250 | 74 | 123 | F03-F04 | 9 | 9 | R3 | R3 |
| 20 | 3/4'' | 20 | 21 | 25 | 270 | 78 | 123 | F03-F04 | 9 | 9 | R3 | R3 |
| 25 | 1'' | 25 | 26 | 30 | 270 | 89 | 153 | F04-F05 | 11 | 11 | R3 | R3.5 |
| 32 | 11/4'' | 32 | 32 | 36 | 270 | 94 | 153 | F04-F05 | 11 | 11 | R3 | R3.5 |
| 40 | 11/2'' | 38 | 41 | 45 | 270 | 110 | 183 | F05-F07 | 14 | 14 | R3.5 | R4.5 |
| 50 | 2'' | 50 | 50 | 54 | 300 | 118 | 183 | F05-F07 | 14 | 14 | R3.5 | R4.5 |
| 65 | 21/2'' | 65 | 64 | 70 | 290 | 161 | 246 | F07-F10 | 17 | 17 | R4.5 | R5.5 |
| 80 | 3'' | 80 | 80 | 86 | 310 | 170 | 246 | F07-F10 | 17 | 17 | R4.5 | R5.5 |
| 100 | 4'' | 100 | 100 | 106 | 350 | 202 | 395 | F10-F12 | 22 | 22 | R5.7 | R6.7 |
