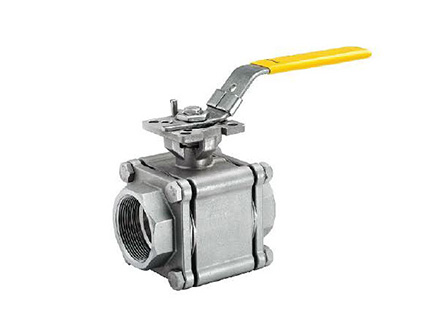

·ISO 5211平台直接安装
·防爆中轴
·工作压力：DN8-DN250 2000PSI
DN32-DN50 1599PSI
DN65-DN100 1000PSI
·适用温度范围：-20 同180℃
·挂锁装置
·管螺纹参照：ANSI B1.20.1(NPT)
DIN 259.DIN 2999
ISO 288
BSP
PT

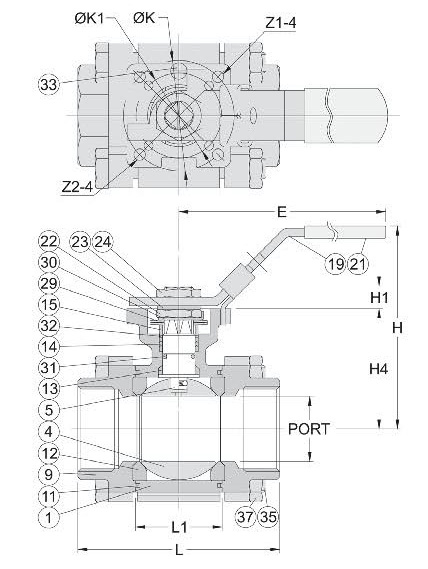

| NO. | 部件名称PART NAME | 材料 MATERIAL |
| 1 | 阀体 BODY | ASTM A351 Gr.CF8M |
| 2 | 钢球 BALL | ASTM A351 Gr.CF8M |
| 3 | 中轴 STEM | SS316 |
| 4 | 侧盖 END CAP | ASTM A351 Gr.CF8M |
| 5 | 大薄片 BODY SEAL | PTFE |
| 6 | 球垫 SEAT | RTFE |
| 7 | 小薄片 THRUST WASHER | RTFE |
| 8 | 中口 STEM PACKING | RTFE |
| 9 | 铁圈 GLAND BUSH | SS304 |
| 10 | 把手 HANDEL | SS304 |
| 11 | 胶套 HANDLE COVER | PLASTIC |
| 12 | 下螺帽 STEM NUT | SS304 |
| 13 | 方型华司 HANDLE WASHER | SS304 |
| 14 | 上螺帽 HANDLE NUT | SS304 |
| 15 | 盘型华司 BELLEVILLE WASHER | SS304 CSP |
| 16 | 防松华司 TAB WASHER | SS304 |
| 17 | O型环 STEM O-RING | VITON |
| 18 | 抗磨片 PACKING FOLLOWER | PTFE+25GGF |
| 19 | 档柱 STOP PIN | SS304 |
| 20 | 螺丝 BODY BLOT | SS304 |
| 21 | 螺帽 BOLT NUT | SS304 |
| SIZE | PORT | L | E | H | H1 | H4 | C | øK | øK1 | Z1-4 | Z2-4 | L1 | BW | D1 | D2 | T | |
| DN8 | 1/4'' | 11.5 | 56.1 | 112.0 | 72.9 | 8.5 | 37.0 | 9.0 | 50.0 | 36.0 | 7.0 | 6.0 | 22.5 | 13.7 | 11.0 | 14.2 | 10.0 |
| DN10 | 3/8'' | 12.5 | 56.1 | 112.0 | 72.9 | 8.5 | 37.0 | 9.0 | 50.0 | 36.0 | 7.0 | 6.0 | 22.5 | 17.1 | 12.5 | 17.5 | 10.0 |
| DN15 | 1/2'' | 15.0 | 68.0 | 112.0 | 72.9 | 8.5 | 37.0 | 9.0 | 50.0 | 36.0 | 7.0 | 6.0 | 22.5 | 21.3 | 15.8 | 21.8 | 10.0 |
| DN20 | 3/4'' | 20.0 | 76.1 | 112.0 | 81.8 | 8.5 | 45.0 | 9.0 | 50.0 | 36.0 | 7.0 | 6.0 | 27.5 | 26.7 | 20.9 | 27.4 | 13.0 |
| DN25 | 1'' | 25.0 | 84.6 | 136.0 | 90.5 | 11.4 | 53.5 | 9.0 | 50.0 | 36.0 | 7.0 | 6.0 | 34.0 | 33.4 | 26.6 | 34.1 | 13.0 |
| DN32 | 1-1/4'' | 32.0 | 98.1 | 185.0 | 98.0 | 11.4 | 59.0 | 9.0 | 50.0 | 36.0 | 7.0 | 6.0 | 42.5 | 42.2 | 35.1 | 42.7 | 13.0 |
| DN40 | 1-1/2'' | 38.0 | 111.2 | 197.9 | 114.7 | 14.0 | 74.8 | 14.0 | 70.0 | 50.0 | 9.0 | 7.0 | 52.0 | 48.3 | 40.9 | 49.0 | 13.0 |
| DN50 | 2-1/2'' | 50.0 | 126.7 | 197.9 | 124.0 | 13.7 | 83.5 | 14.0 | 70.0 | 50.0 | 9.0 | 7.0 | 63.5 | 60.3 | 52.5 | 61.0 | 16.0 |
| DN65 | 2'' | 65.0 | 165.0 | 267.0 | 155.0 | 18.0 | 108.8 | 17.0 | 102.0 | 70.0 | 11.0 | 9.0 | 85.5 | 73.0 | 62.7 | 77.0 | 16.0 |
| DN80 | 3'' | 80.0 | 208.0 | 267.0 | 208.5 | 18.0 | 118.3 | 17.0 | 102.0 | 70.0 | 11.0 | 9.0 | 102.0 | 88.6 | 77.9 | 90.2 | 16.0 |
| DN100 | 4'' | 100.0 | 232.5 | 322.0 | 216.7 | 18.0 | 153.8 | 17.0 | 102.0 | 70.0 | 11.0 | 9.0 | 128.5 | 114.3 | 102.3 | 115.3 | 16.0 |
