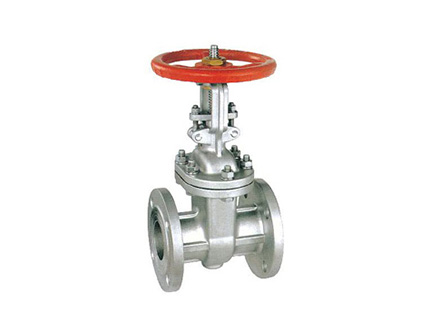

· 结构长度 FACE TO FACE DIMENSION GB/T 12221
· 法兰规范 END FLANGE DIMENSION;GB/T 9113
· 设计制造 DESIGN:ANSI B16.34
· 检查与测试 TEST:API598
· 精密铸造 INVESTMENT CASTING BODY

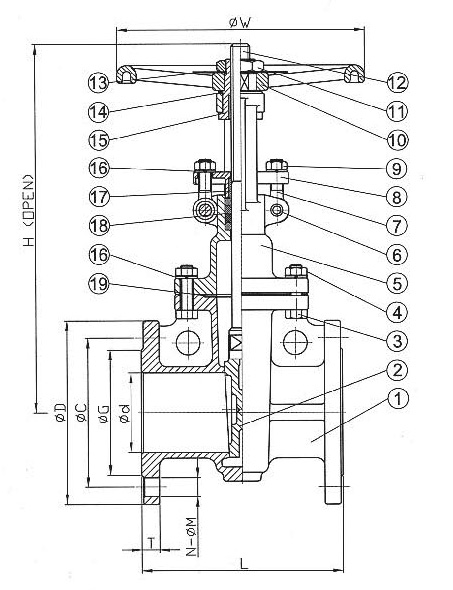

| NO. | 部件名称 PART NAME | 材料 MATERIAL | |
| 1 | 阀体 BODY | CF8 | CF8M |
| 2 | 阀瓣 DISC | CF8 | CF8M |
| 3 | 螺栓 BOLT | SS304 | |
| 4 | 螺母 NUT | SS304 | |
| 5 | 阀盖 CAP | CF8 | CF8M |
| 6 | 横栓 HINGE PIN | SS304 | |
| 7 | 单眼螺丝 EYE BOLT | SS304 | |
| 8 | 牛腩 GLAND | CF8 | |
| 9 | 单眼螺母 EYE NUT | SS304 | |
| 10 | 手轮 HANDLEWHEEL | FCD | |
| 11 | 螺母 NUT | BRONZE | |
| 12 | 轴心 STEM | SS304 | SS316 |
| 13 | 铭牌 MAMEPLATE | SS304 | |
| 14 | 垫片 GASKET | BRONZE | |
| 15 | 轴套 TOKE SLEEVE | BRONZE | |
| 16 | 弹簧华司 SPRING WASHER | SS304 | |
| 17 | 衬套 SLEEVE | PTFE | |
| 18 | 中口 PACKING | PTFE | |
| 19 | 大薄片 GASKET | *PTFE/304+GRAPHITE | |
|
壳体（水） SHELL(BY WATER) |
450PSI | |
| 32Kg/cm² | ||
|
阀座 SEAT |
水 BY WATER |
315PSI |
| 22kg/cm² | ||
|
气体 BY AIR |
80PSI | |
| 6Kg/cm² | ||
| SIZE | d | L | H | W | D | C | G | T | N | M | |
| DN | NPS | ||||||||||
| 15 | 1/2" | 15 | 108 | 182 | 120 | 95 | 65 | 46 | 14 | 4 | 14 |
| 20 | 3/4" | 20 | 117 | 195 | 120 | 105 | 75 | 56 | 16 | 4 | 14 |
| 25 | 1" | 25 | 127 | 237 | 120 | 115 | 85 | 65 | 16 | 4 | 14 |
| 32 | 11/4" | 32 | 140 | 294 | 200 | 140 | 100 | 76 | 18 | 4 | 18 |
| 40 | 11/2" | 40 | 165 | 294 | 200 | 150 | 110 | 84 | 18 | 4 | 18 |
| 50 | 2" | 50 | 178 | 335 | 200 | 165 | 125 | 99 | 20 | 4 | 18 |
| 65 | 21/2" | 65 | 190 | 393 | 200 | 185 | 145 | 118 | 20 | 4 | 18 |
| 80 | 3" | 80 | 203 | 467 | 250 | 200 | 160 | 132 | 20 | 8 | 18 |
| 100 | 4" | 100 | 229 | 549 | 250 | 220 | 180 | 156 | 22 | 8 | 18 |
| 125 | 5" | 125 | 254 | 630 | 300 | 250 | 210 | 184 | 22 | 8 | 18 |
| 150 | 6" | 150 | 267 | 743 | 300 | 285 | 240 | 211 | 24 | 8 | 22 |
| 200 | 8" | 200 | 292 | 910 | 350 | 340 | 295 | 268 | 24 | 12 | 22 |
| 250 | 10" | 250 | 330 | 1097 | 350 | 405 | 355 | 319 | 26 | 12 | 26 |
| 300 | 12" | 300 | 356 | 1285 | 400 | 460 | 410 | 370 | 28 | 12 | 26 |
