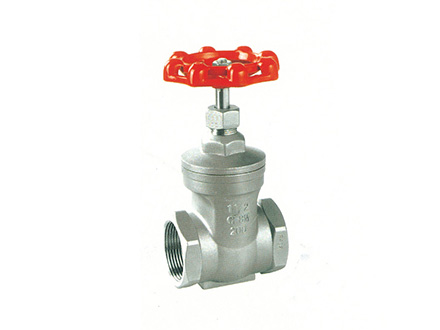

· 管螺纹按照PIPE THREAD IN ACCORDANCE:
NPT,BSPT,DIN 259,DIN 2999,ISO 228 CLASSA
· 精密铸造INVESTMENT CASTING BODY
· 非升杆式NON-RISING-STEM
· CLASS200W.O.G

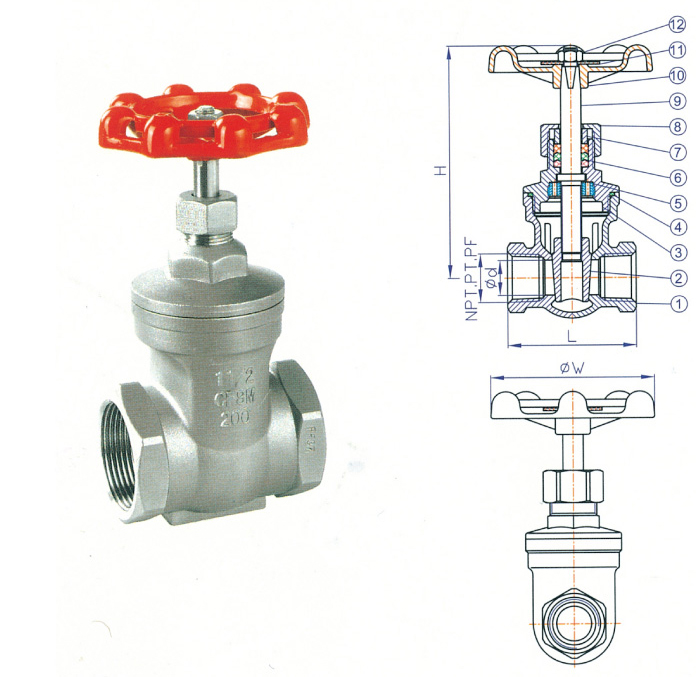

| NO. | 部件名称 PART NAME | 材料 MATERIAL |
| 1 | 阀体 BODY | CF8M |
| 2 | 阀瓣 DISC | CF8M |
| 3 | 阀盖 CAP | CF8M |
| 4 | 大薄片 GASKET | PTFE |
| 5 | 止退片 WHORL GASKET | SS304 |
| 6 | 中口 PACKING | PTFE |
| 7 | 套筒 GLAND | SS304 |
| 8 | 阀盖螺母 CAP NUT | CF8M |
| 9 | 轴心 STEM | SS316 |
| 10 | 手轮 HANDLEWHEEL | ALUMNUM |
| 11 | 铭牌 NAMELATE | ALUMNUM |
| 12 | 螺母 NUT | SS304 |
| SIZE | d | L | H | W | |
| DN | NPS | ||||
| 15 | 1/2" | 15 | 55 | 100 | 70 |
| 20 | 3/4" | 20 | 60 | 107 | 70 |
| 25 | 1" | 25 | 65 | 110 | 80 |
| 32 | 11/4" | 32 | 75 | 130 | 80 |
| 40 | 11/2" | 40 | 85 | 147 | 90 |
| 50 | 2" | 50 | 95 | 170 | 100 |
| 65 | 21/2" | 65 | 116 | 213 | 140 |
| 80 | 3" | 80 | 130 | 239 | 140 |
