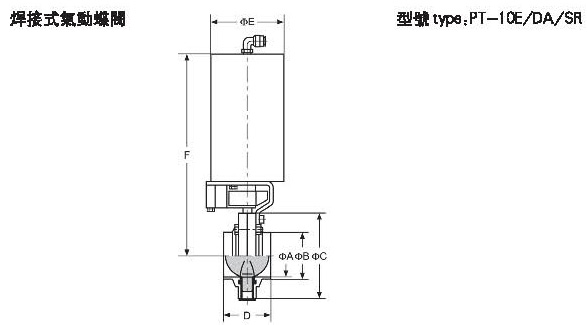

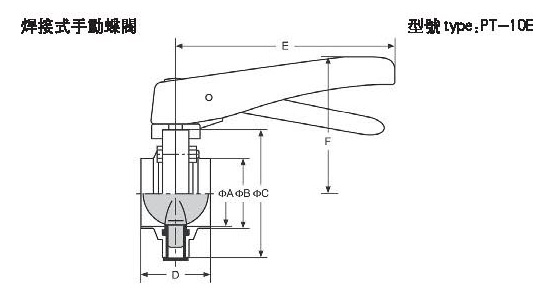

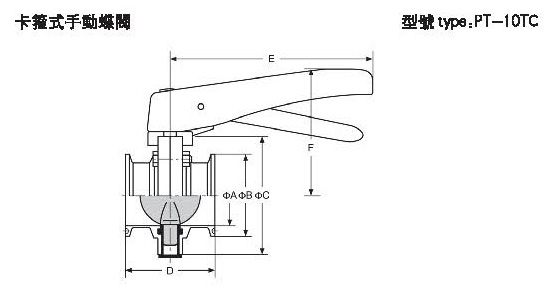

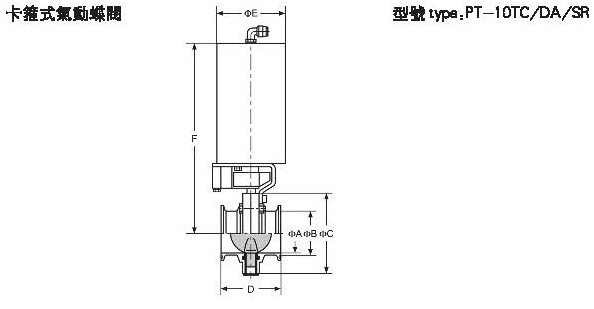

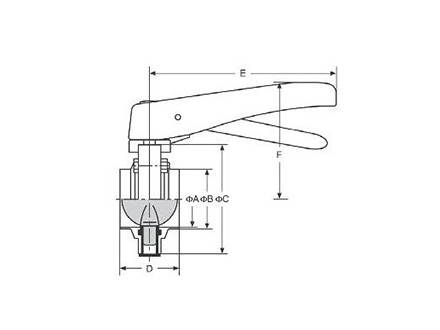

| 规格 SIZE | A | B | C | D | E | F |
| 3/4² | 16 | 19 | 69 | 50 | 166 | 90 |
| 1² | 22.4 | 25.4 | 69 | 50 | 166 | 90 |
| 1.25² | 29 | 32 | 78 | 50 | 166 | 94 |
| 1.5² | 35 | 38 | 80 | 50 | 166 | 95 |
| 2² | 48 | 51 | 94 | 50 | 166 | 103 |
| 2.5² | 59.5 | 63.5 | 117 | 50 | 166 | 113 |
| 3² | 72.1 | 76.1 | 130 | 60 | 166 | 120 |
| 3.5² | 85 | 89 | 143 | 65 | 166 | 123 |
| 4² | 97.6 | 101.6 | 163 | 80 | 166 | 136 |
| 规格 SIZE | A | B | C | D | E | F |
| 3/4² | 16 | 19 | 69 | 50 | 60 | 180 |
| 1² | 22.4 | 25.4 | 69 | 50 | 60 | 180 |
| 1.25² | 29 | 32 | 78 | 50 | 60 | 180 |
| 1.5² | 35 | 38 | 80 | 50 | 85 | 228 |
| 2² | 48 | 51 | 94 | 50 | 85 | 235 |
| 2.5² | 59.5 | 63.5 | 117 | 50 | 85 | 245 |
| 3² | 72.1 | 76.1 | 130 | 60 | 85 | 255 |
| 3.5² | 85 | 89 | 143 | 65 | 85 | 260 |
| 4² | 97.6 | 101.6 | 163 | 80 | 108 | 305 |
| 规格 SIZE | A | B | C | D | E | F |
| 3/4² | 16 | 34 | 69 | 68 | 168 | 90 |
| 1² | 22.4 | 50.5 | 69 | 68 | 168 | 90 |
| 1.25² | 29 | 50.5 | 78 | 68 | 168 | 94 |
| 1.5² | 35 | 50.5 | 80 | 68 | 168 | 95 |
| 2² | 48 | 84 | 94 | 70 | 168 | 103 |
| 2.5² | 59.5 | 77.5 | 117 | 75 | 168 | 113 |
| 3² | 72.1 | 91 | 130 | 80 | 168 | 120 |
| 3.5² | 85 | 108 | 143 | 85 | 168 | 123 |
| 4² | 97.6 | 119 | 163 | 85 | 168 | 133 |
| 规格 SIZE | A | B | C | D | E | F |
| 3/4² | 16 | 34 | 69 | 68 | 60 | 180 |
| 1² | 22.4 | 50.5 | 69 | 68 | 60 | 180 |
| 1.25² | 29 | 50.5 | 78 | 68 | 60 | 180 |
| 1.5² | 35 | 50.5 | 80 | 68 | 85 | 228 |
| 2² | 48 | 64 | 94 | 70 | 85 | 235 |
| 2.5² | 59.5 | 77.5 | 117 | 75 | 85 | 245 |
| 3² | 72.1 | 91 | 130 | 80 | 85 | 255 |
| 3.5² | 85 | 108 | 143 | 85 | 85 | 260 |
| 4² | 97.6 | 119 | 163 | 85 | 108 | 305 |
