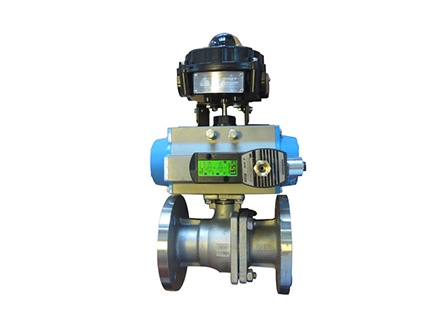

· 尺寸:1/2"~6"（DN15~DN150）
· ISO5211执行机构的平台设计
· 防爆中轴，防静电设置。
· 阀体：ASTMA-351J Gr.CF8M (DIN1.4408)
· 球体：SS316
· 阀杆：SS316
· 密封圈：PTFE+15%GF
· 结构长度尺寸规范：DIN3202 F4/F5
· 法兰尺寸标准：DIN2501 PN 10/16/25/40
· 可安装：1.气动头 2.电磁阀 3.限位开关 4.定位器
| SIZE | φA | B1 | B2 | B3 | φC | E | F | H | H3 |
| 1/2" | 30.0 | 22.4 | 34.5 | 1.0 | 15.0 | 165.0 | 8.0 | 60.6 | 131.0 |
| 3/4" | 30.0 | 21.4 | 41.1 | 1.0 | 20.0 | 165.0 | 8.0 | 67.2 | 138.0 |
| 1" | 35.0 | 26.5 | 49.5 | 2.0 | 25.0 | 165.0 | 9.7 | 82.9 | 157.0 |
| 1-1/2" | 55.0 | 34.8 | 78.3 | 2.0 | 38.0 | 200.0 | 12.0 | 115.3 | 186.3 |
| 2" | 55.0 | 34.8 | 86.4 | 2.0 | 50.0 | 250.0 | 12.0 | 132.4 | 194.0 |
| 2-1/2" | 55.0 | 34.8 | 97.4 | 2.0 | 65.0 | 250.0 | 12.0 | 143.4 | 205.4 |
| 3" | 70.0 | 46.0 | 107.4 | 2.0 | 80.0 | 350.0 | 15.0 | 176.5 | 283.0 |
| 4" | 70.0 | 45.5 | 107.4 | 2.0 | 100.0 | 350.0 | 15.0 | 191.0 | 324.0 |
| 6" | 80.0 | 66.5 | 210.2 | 2.0 | 150.0 | 755.0 | 19.0 | 276.7 | 376.7 |
| SIZE | H4 | φI | L | M | ISO5211 | VALVE TORQUE（Nm) | ACTUATOR | ACTUATOR | AIR PRESSURE |
| 1/2" | 141.5 | 42.0 | 108.0 | M5(10-24UNC) | F04 | 5.0 | 52DA | 63SR01 | 80PSI |
| 3/4" | 187.3 | 42.0 | 117.3 | M5(10-24UNC) | F04 | 9.0 | 52DA | 63SR03 | 80PSI |
| 1" | 211.0 | 50.0 | 127.0 | M6(1/4"-20UNC) | F05 | 13.0 | 63DA | 75SR02 | 80PSI |
| 1-1/2" | 235.6 | 70.0 | 165.1 | M8(5/16"-18UNC) | F07 | 24.0 | 75DA | 100SR02 | 80PSI |
| 2" | 254.3 | 70.0 | 178.3 | M8(5/16"-18UNC) | F07 | 25.0 | 75DA | 100SR03 | 80PSI |
| 2-1/2" | 277.9 | 70.0 | 190.3 | M8(5/16"-18UNC) | F07 | 27.0 | 75DA | 100SR03 | 80PSI |
| 3" | 373.8 | 102.0 | 203.5 | M10(3/8"-16UNC) | F10 | 38.0 | 100DA | 115SR01 | 80PSI |
| 4" | 417.3 | 102.0 | 229.5 | M10(3/8"-16UNC) | F10 | 48.0 | 125DA | 115SR02 | 80PSI |
| 6" | 505.7 | 125.0 | 393.7 | M12(7-16"-14UNC) | F12 | 110.0 | 160DA | 160SR04 | 80PSI |
| SIZE | N | φP | φQ | φR | φT | W | W1 | |||||
|
PN10/ 16/40 |
PN 10/16 |
PN40 |
PN 10/16 |
PN40 |
PN 10/16 |
PN40 |
PN 10/16 |
PN40 |
PN 10/16 |
PN40 |
PN10/ 16/40 |
|
| 1/2" | 4 | 60.5 | 60.5 | 14.0 | 14.0 | 45.0 | 45.0 | 95.0 | 95.0 | 14.0 | 16.0 | 2.0 |
| 3/4" | 4 | 75.0 | 75.0 | 14.0 | 14.0 | 58.0 | 58.0 | 105.0 | 105.0 | 16.0 | 18.0 | 2.0 |
| 1" | 4 | 85.0 | 85.0 | 14.0 | 14.0 | 68.0 | 68.0 | 115.0 | 115.0 | 16.0 | 18.0 | 2.0 |
| 1-1/2" | 4 | 110.0 | 110.0 | 18.0 | 18.0 | 88.0 | 88.0 | 140.0 | 140.0 | 16.0 | 18.0 | 3.0 |
| 2" | 4 | 125.0 | 125.0 | 18.0 | 18.0 | 102.0 | 102.0 | 165.0 | 165.0 | 18.0 | 20.0 | 3.0 |
| 2-1/2" | 4 | 145.0 | 145.0 | 18.0 | 18.0 | 122.0 | 122.0 | 185.0 | 185.0 | 18.0 | 22.0 | 3.0 |
| 3" | 4 | 160.0 | 160.0 | 18.0 | 22.0 | 138.0 | 138.0 | 200.0 | 200.0 | 20.0 | 24.0 | 3.0 |
| 4" | 8 | 180.0 | 190.0 | 18.0 | 26.0 | 158.0 | 162.0 | 220.0 | 235.0 | 20.0 | 24.0 | 3.0 |
| 6" | 8 | 240.0 | 250.0 | 22.0 | 30.0 | 212.0 | 218.0 | 285.0 | 300.0 | 20.0 | 26.0 | 3.0 |

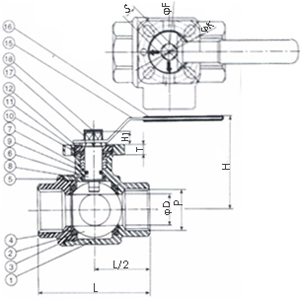

| 序号 | 零件名称 | 材质 | 数量 |
| 1 | 阀体 | CF8M/WCB | 1 |
| 2 | 阀盖 | CF8M/WCB | 1 |
| 3 | 球体 | SS316 | 1 |
| 4 | 密封圈 | PTFE/RTFE | 2 |
| 5 | 阀本密封圈 | PTFE | 1 |
| 6 | 阀杆 | SS316 | 1 |
| 7 | 止推垫圈 | PTFE/RTFE | 1SET |
| 8 | 阀杆填料 | PTFE/RTEF | 1SET |
| 9 | 压盖垫片 | 50%S.SFILLED PTFE | 1 |
| 10 | 压板 | SS304 | 1 |
| 11 | 盘形垫片 | SS304 | 1SET |
| 12 | 止锁片 | SS304 | 1 |
| 13 | 定位垫片 | SS304 | 1 |
| 14 | 阀杆螺母 | SS304 | 1 |
| 15 | 紧固螺丝 | SS304 | 1 |
| 16 | 手柄 | SS304 | 1 |
| 17 | 定位销 | SS304 | 1 |
| 18 | 螺栓 | SS304 | 4 |
| 19 | 螺母 | SS304 | 4 |
| 20 | 气动头 | ALUMINUM | 1 |
| 21 | 螺栓 | SS304 | 8 |
| 22 | 联轴器 | SS304 | 1 |
| 23 | 安装平台 | SS304 | 1 |
| 24 | O形圈 | VITON | 1 |
