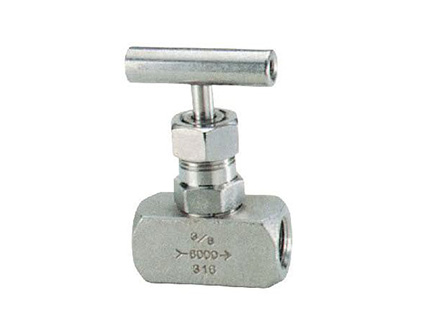

·螺纹采用ASME B1.20.1(NPT)可选用
·DIN2999或BS 21 ISO 228/2AKG ISO 7/1
The therad ends confirm to B1.20.1
(NPT)DIN2999&BS21 IS0 228/1Q &ISO7/1
·公称压力:6000psi,0000psi
Working Pressure:6000psi,10000psi
·防火安全设计
Fire safe design

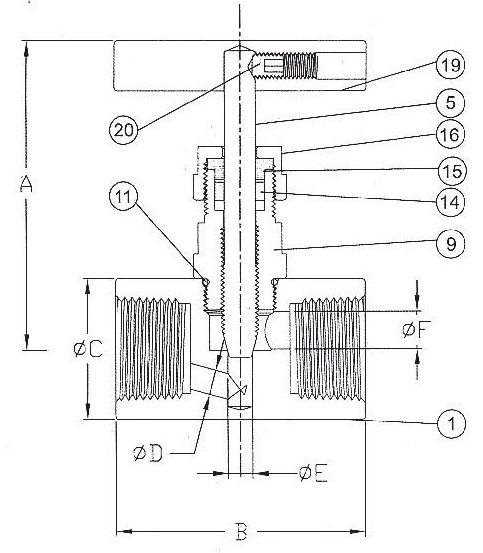

| NO. | 部件名称PART NAME | 材料 MATERIAL | |
| 1 | 阀体 BODY | 不锈钢 ASTM A351 GR.CF8M | |
| 5 | 阀杆 STEM | 不锈钢 SS316 | |
| 9 | 阀盖 BONNET | 不锈钢 ASTM A351 GR.CF8M | |
| 11 | 阀座 BODY SEAL | 丁晴橡胶 NBR | |
| 14 | 阀杆填料 STEM PACKING | 铁氟隆 TEFLON | |
| 15 | 压盖 GLAND | 不锈钢 SS304 | |
| 16 | 压盖螺母 GLAND NUT | 不锈钢 SS304 | |
| 19 | 手柄 HANDEL | 不锈钢 SS304 | |
| 20 | 螺钉 SCREW | 不锈钢 SS304 |
| SIZE | A | B | C | D | E | F | Wt(kg) |
| 1/8" | 76.0 | 45.0 | 22.0 | 4.0 | 6.0 | 6.0 | 0.286 |
| 1/4" | 76.0 | 45.0 | 22.0 | 5.0 | 6.0 | 6.0 | 0.276 |
| 3/8" | 78.0 | 59.0 | 25.0 | 5.0 | 6.0 | 6.5 | 0.362 |
| 1/2" | 81.0 | 65.0 | 30.0 | 6.0 | 6.0 | 8.0 | 0.476 |
| 3/4" | 113.0 | 70.0 | 35.0 | 8.0 | 8.0 | 10.0 | 0.788 |
| 1" | 117.0 | 80.0 | 45.0 | 8.0 | 8.0 | 12.0 | 1.218 |
