· 管螺纹按照:PIPE THREAD IN ACCORDANCE:
NPT,BSPT,DIN 259,DIN 2999,ISO 228 CLASS A
· 精密铸造:INVESTMENT CASTING BODY
· CLASS 800 W.O.G.
· 最大工作温度230℃ MAXIMUM WCRKING TEMPERATURE 230℃
| 目数 | 丝号SWG | 孔径直mm | 使用场合 | |
| 40 | 36 | 0.44 | 水、气体 | |
| 100 | 44 | 0.172 | 气、蒸汽、汽油 | |
| 200 | 47 | 0.077 | 油 | |
| 300 | 49 | 0.054 | 油 | |
| 400 | 50 | 0.0385 | 轻油 | |

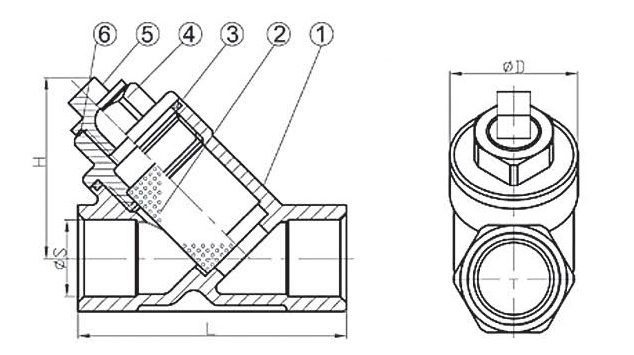

| NO. | 部件名称 PART NAME | 材料 MATERIAL | |
| 1 | 阀体 BODY | CF8M | |
| 2 | 过滤网 SCREEN | SS304 | |
| 3 | 大薄片 GASKET | PTFE | |
| 4 | 阀盖 CAP | CF8M | |
| 5 | 塞头 STOPPER | CF8M | |
| 6 | 垫片 GASKET | PTFE | |
| SIZE | L | H | D | ||
| NPS | DN | ||||
| 8 | 1/4" | 65 | 45 | 31 | |
| 10 | 3/8" | 65 | 45 | 31 | |
| 15 | 1/2" | 65 | 45 | 31 | |
| 20 | 3/4" | 80 | 53 | 36 | |
| 25 | 1" | 90 | 68 | 45 | |
| 32 | 11/4" | 105 | 72 | 50 | |
| 40 | 11/2" | 120 | 80 | 59 | |
| 50 | 2" | 140 | 97 | 75 | |
| 65 | 21/2" | 170 | 112 | 95 | |
| 80 | 3" | 195 | 129 | 111 | |
