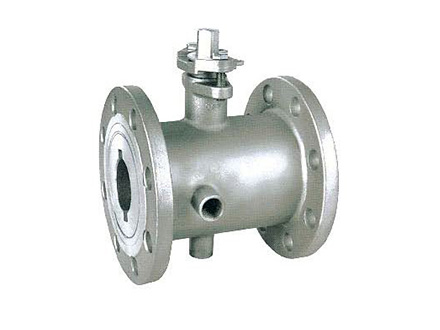

· 法兰规范 END FLANGE DIMENSION: JIS B2220/ANSI B16.5
· 设计制造 DESIGN: ANSI B16.34
· 检查与测试 TEST: JIS B2003/API 598
· 精密铸造 INVESTMENT CASTING BODY

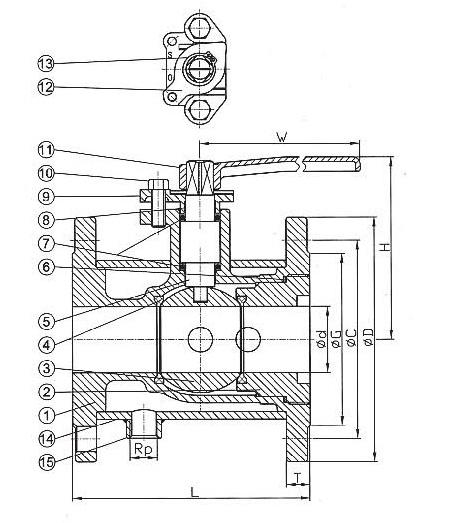

| NO. | 部件名称 | PART NAME | 材料 MATERIAL | |
| 1 | 阀体 | BODY | SCS13/CF8 | SCS14/CF8M |
| 2 | 阀盖 | CAP | SCS13/CF8 | SCS14/CF8M |
| 3 | 钢球 | CAP | SCS13/CF8 | SCS14/CF8M |
| 4 | 球垫 | SEAT | PTFE | |
| 5 | 轴心 | STEM | SS304 | SS316 |
| 6 | 大薄片 | GASKET | PTFE | |
| 7 | 中口 | PACKING | PTFE | |
| 8 | 牛楠衬套 | GLAND PACKING | PTFE | |
| 9 | 牛楠 | GLAND | SCS13 | |
| 10 | 牛楠螺栓 | GLAND BOLT | SS304 | |
| 11 | 把手 | HANDLE | WCB | |
| 12 | 桃形挡片 | STOPPER | SS304 | |
| 13 | c型扣环 | SNAP RING | SS304 | |
| 14 | 夹套 | LACKET | SS304 | |
| 15 | 夹套嘴 | LACKET RUBBOE | SS304 | |
|
壳体（水） SHEll(BY WATER) |
ANSI-150LB | JIS-10K | |
| 450PSI | 2.1Mpa | ||
| 32Kg/cm² | 21.5Kg/cm² | ||
|
阀座 SEAT |
水 BY WATER |
315PSI | 1.6Mpa |
| 22kg/cm² | 16.5kg/cm² | ||
| 气体 | 85PSI | 0.6Mpa | |
| BY AIR | 6kg/cm² | 6kg/cm² | |
| SIZE | D | C | G | T | L | W | Rp | |||||
| DN | NPS | 10K | 150 | 10K | 150 | 10K | 150 | 10K | 150 | |||
| 40 × 15 | 11/2" × 1/2" | 140 | 127 | 105 | 98.5 | 85 | 73 | 16 | 14.3 | 120 | 160 | Rp1/2" |
| 40 × 20 | 11/2" × 3/4" | 140 | 127 | 105 | 98.5 | 85 | 73 | 16 | 14.3 | 120 | 160 | Rp1/2" |
| 50 × 25 | 2" × 1" | 155 | 152 | 120 | 120.5 | 100 | 92 | 16 | 15.9 | 130 | 160 | Rp1/2" |
| 65 × 40 | 21/2" × 11/2" | 175 | 178 | 140 | 139.5 | 120 | 105 | 18 | 17.5 | 165 | 186 | Rp1/2" |
| 80 × 50 | 3" × 2" | 185 | 190 | 150 | 152.5 | 126 | 127 | 18 | 19.1 | 180 | 186 | Rp1/2" |
| 100 × 65 | 4" × 21/2" | 210 | 229 | 175 | 190.5 | 155 | 157 | 18 | 23.9 | 190 | 324 | Rp1/2" |
| 100 × 80 | 4" × 3" | 210 | 229 | 175 | 190.5 | 155 | 157 | 18 | 23.9 | 200 | 324 | Rp1/2" |
| 125 × 80 | 5" × 3" | 250 | 254 | 210 | 216 | 185 | 186 | 20 | 23.9 | 200 | 324 | Rp1/2" |
| 150 × 100 | 6" × 4" | 280 | 279 | 240 | 241.5 | 215 | 216 | 22 | 25.4 | 230 | 324 | Rp1/2" |
| 200 × 150 | 8" × 6" | 330 | 343 | 290 | 298.5 | 262 | 270 | 22 | 28.6 | 270 | 750 | Rp3/4" |
