· 法兰标准 END FLANGE DIMENSION: ANSL150LB,JIS10K,PN10,PN18
· 结构长度 FACE TO FACE DIMENSION: ISO5752 SHORT BODY
· 测试标准 TEST: API 598
| NO. | 邮件名称 PART NAME | 材质 MATERIAL | DESCRIPTION | |
| JIS | ASTM | |||
| 1 | 阀体 BODY | 铝 ALUMINUM | ADC12 | B108 |
| 不锈钢 STAINLESS STEEL | SCS13,SCS14 | A361,CF8,A361 CF8M | ||
| 2 | 阀座 SEAT | 橡胶 RUBBER | BUNA-N(NBR) | |
| EPDM | ||||
| 3 | 阀瓣 DISC | 铸钢 CAST STEEL | WC8 | A218 GR,WC8 |
| 不锈钢 STAINLESS STEEL | SCS13 | A351 CF8 | ||
| SCS14 | A351 CF8M | |||
| 4 | 阀杆 SHAFT | 不锈钢 STAINLESS STEEL | SS410 | A182 F410 |
| SS316 | A182 F318 | |||
| SS304 | A182 F304 | |||

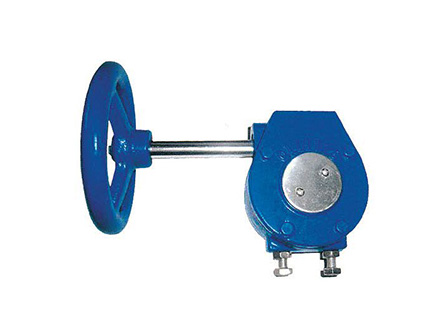

| 5 | 涡轮传动箱 WORM GEAR BOX | 铸铁 CAST IRON | FC200 | A126 CL-B |
| 6 | 手柄 LEVER HANDEL | 铸铁 CAST IRON | FC200 | A126 CL-B |
| 7 | 高压套管 HIGH-PRESSURE BUSHING | 橡胶 RUBBER | EPDM | |
| 8 | 手柄 LEVER HANDEL | 工程塑胶 BNGINEERING PLASTIC | ABS(PAINTED ACRYLIC RESIN) | |
| NO. | INCH | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| MM | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
|
阀门 VALVE |
ØA | 50 | 65 | 80 | 99 | 124 | 149 | 199 | 250 | 299 | 328 | 380 | 431 | 489 | 588 |
| ØB | 98 | 118 | 128 | 153 | 184 | 214 | 265 | 327 | 371 | 421 | 481 | 535 | 625 | 695 | |
| L1 | 66 | 79 | 91 | 110 | 124 | 140 | 176 | 210 | 240 | 274 | 315 | 345 | 390 | 465 | |
| HOLE NO | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | |
| E | 43 | 46 | 46 | 52 | 56 | 56 | 60 | 68 | 78 | 78 | 102 | 114 | 127 | 154 | |
|
涡轮 WORM GEAR |
L2 | 198 | 208 | 216 | 233 | 246 | 267 | 339 | 351 | 413 | 440 | 450 | 480 | 558 | 635 |
| p | 170 | 170 | 170 | 170 | 170 | 170 | 260 | 260 | 260 | 280 | 300 | 300 | 330 | 330 | |
| ØH | 160 | 160 | 160 | 160 | 160 | 160 | 250 | 250 | 250 | 305 | 305 | 305 | 457 | 457 |
