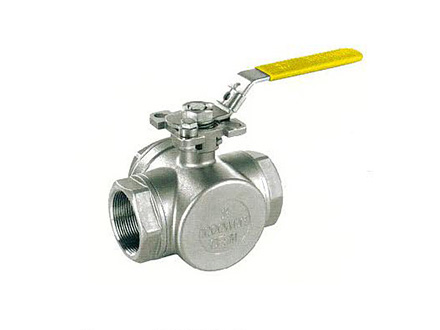

·管螺纹按照 PIPE THREAD IN ACCORDANCE:
NPT,BSPT,DIN 259,DIN2999,ISO228 CLASS A
·防爆轴心/减流量 BLOW-OUT PROOF STEM/REDUCE PORT
·精密铸造 INVESTMENT CASTING BODY
·带ISO 5211平台座 WITH ISO 5211 MOUNTING PAD
·1000PSI(PN63)W.O.G
·挂锁装置 LOCKING DEVICE
·有四个阀座 THERE ARE FOUR SEATS

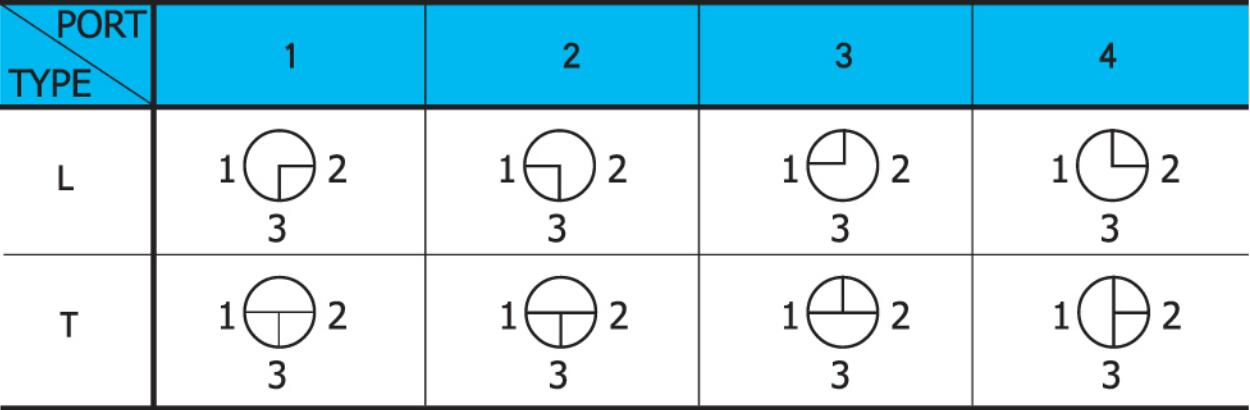

·L型端口或T型端口可用3600旋转把手
L-PORT OR T-PORT AVAILABLE/360° ROTARY HANDLE

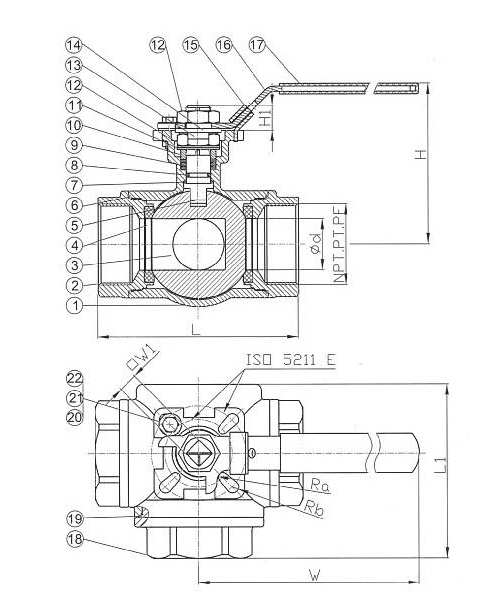

| NO. | 部件名称PART NAME | 材料 MATERIAL | |
| 1 | 阀体 BODY | WCB | CF8M |
| 2 | 阀盖 CAP | WCB | CF8M |
| 3 | 钢球 BALL | CF8M | |
| 4 | 球垫 SEAT | PTFE | |
| 5 | 轴心 STEM | SS316 | |
| 6 | 大薄片 GASKET | RTFE | |
| 7 | 小薄片 THRUST WASHER | R15%R+PTFE | |
| 8 | O型圈 O-RING | VITON | |
| 9 | 中口 PACKING | RTFE | |
| 10 | 轴帽 GLAND | SS304 | |
| 11 | 弹簧华司 SPRING WASHER | SS304 | |
| 12 | 轴心螺母 STEM NUT | SS304 | |
| 13 | 蝶形垫片 BELLEVILLE WASHER | SS304 | |
| 14 | 把手垫片 HANDLE WASHER | SS304 | |
| 15 | 挂锁装置 LOCKING DEVICE | SS304 | |
| 16 | 把手 HANDLE | SS304 | |
| 17 | 把手套 PLASTIC COVER | PLASTIC | |
| 18 | 阀盖A CAP-A | SS304 | |
| 19 | 大薄片 A GASKET-A | PTFE | |
| 20 | 定位销 STOP PIN | SS304 | |
| 21 | 螺栓垫片 BOLT WASHER | SS304 | |
| 22 | 螺母 NUT | SS304 | |
| SIZE | d | L | F | H | W | E | H1 | W1 | Ma | |
| DN | NPS | |||||||||
| 8 | 1/4'' | 11.6 | 76 | 58.5 | 67 | 153 | 42 | 18 | 8 | M5 |
| 10 | 3/8'' | 12.5 | 76 | 58.5 | 67 | 153 | 42 | 18 | 8 | M5 |
| 15 | 1/2'' | 12.5 | 76 | 58.5 | 67 | 153 | 42 | 18 | 8 | M5 |
| 20 | 3/4'' | 16 | 86 | 72.0 | 77 | 153 | 42 | 20 | 8 | M5 |
| 25 | 1'' | 20 | 96 | 81.5 | 83 | 183 | 50 | 23 | 9.5 | M6 |
| 32 | 1/4'' | 25 | 117 | 94.5 | 88 | 183 | 50 | 23 | 9.5 | M6 |
| 40 | 1/2'' | 32 | 124 | 104 | 116 | 246 | 70 | 34 | 12.5 | M8 |
| 50 | 2'' | 38 | 148 | 125 | 124 | 246 | 70 | 34 | 12.5 | M8 |
