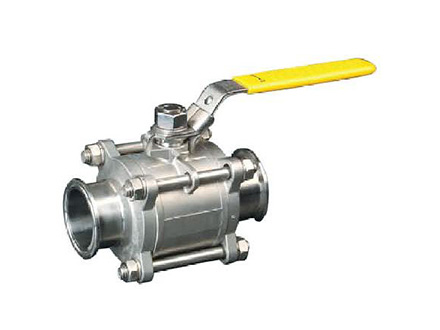

·PT-306L/T DN8-DN50(1/4''-2'')
·防爆中轴
·卡箍式
·工作压力:DN15-DN50 1000PSI
DN65-DN100 800PSI
·适用温度范围:-20 TO 180℃
·挂锁装置

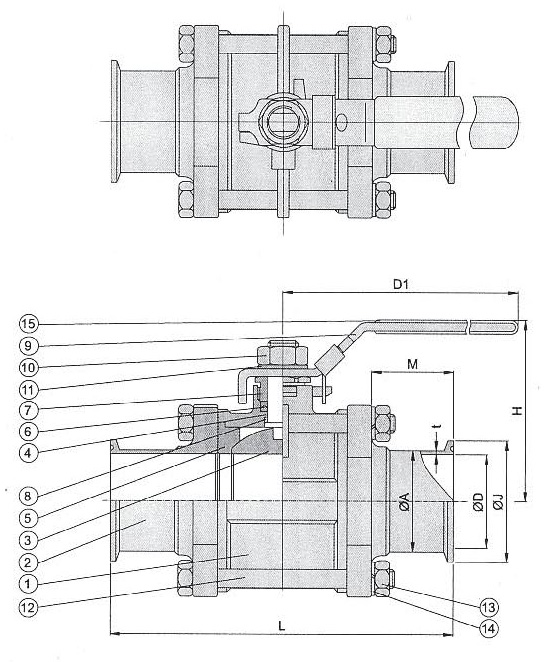

| NO. | 部件名称PART NAME | 材料 MATERIAL | Q'TY |
| STAINLESS STEEL | |||
| 1 | 阀体 BODY | ASTM A351 GR.CF8M | 1 |
| 2 | 侧盖 CAP | ASTM A351 GR.CF8M | 2 |
| 3 | 钢球 BALL | ASTM A276 GR.316 | 1 |
| 4 | 中轴 STEM | ASTM A276 GR.316 | 1 |
| 5 | 球垫 SEAT | PTFE | 2 |
| 6 | 中口 STEM PACKINGS | PTFE | 1 |
| 7 | 轴帽 GLAND | SS304 | 1 |
| 8 | 大薄片 END SEALS | PTFE | 1 |
| 9 | 把手 HANDLE | SS304 | 1 |
| 10 | 轴帽 HANDLE NUT | SS304 | 1 |
| 11 | 弹簧华司 HANDLE WASHER | SS304 | 1 |
| 12 | 螺丝 BOLTS | SS304 | 4-6 |
| 13 | 螺帽 BOLTS NUTS | SS304 | 4-6 |
| 14 | 弹簧华司 BOLTS WASHERS | SS304 | 4-12 |
| 15 | 胶套 HANDLE SLEEVE | VINYL GRIP | 1 |
| SIZE | L | A | D | t | J | M | H | D1 |
| 1/2'' | 70.9 | 12.70 | 9.40 | 1.65 | 25.4 | 16.7 | 58.0 | 122.9 |
| 3/4'' | 97.5 | 19.05 | 15.75 | 1.65 | 25.4 | 27.5 | 61.0 | 122.9 |
| 1'' | 108.2 | 25.50 | 22.20 | 1.65 | 50.4 | 28.6 | 68.0 | 144.9 |
| 11/2'' | 135.8 | 38.20 | 34.90 | 165 | 50.4 | 31.4 | 84.5 | 188.9 |
| 2'' | 154.7 | 50.80 | 47.50 | 165 | 63.9 | 34.0 | 93.2 | 188.9 |
| 121/2'' | 168.5 | 63.60 | 60.30 | 165 | 77.5 | 28.0 | 131.8 | 255.3 |
| 3'' | 196.2 | 76.30 | 73.00 | 165 | 90.9 | 31.6 | 140.0 | 260.8 |
| 4'' | 232.5 | 101.60 | 97.4 | 2.10 | 118.9 | 34.0 | 173.6 | 322.2 |
